6" Daylighter Gravity® LED - 2-Light System - Spot Beam
Estimate delivery times: 7-14 days (Stocked), 14-21 days (Airfreight from USA).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guarantee Safe Checkout
Product Specifications
SKU | 0651 |
Weight | 8.000000 |
Amp Draw | 3.3 a |
Total Wattage | 40W |
Beam Distance | 972 m |
Voltage | 9V-32V |
Lumens | 2,300 lm |
Candela | 215,000 cd |
Lux | 2,150 lx |
Beam Pattern | Spot |
Light Colour | White |
Lens Colour | Clear |
Mount Location/s | A-Pillar / Ditch / Windshield, Bumper, Overhead / Roof, Rear / Trunk |
IP Rating | IP67 |
Material | Stainless Steel |
Light Temperature | 5000K |
Product Dimensions | W - 6.22" x H - 8.42" x D - 5.38" |

6" Daylighter Gravity® LED - 2-Light System - Spot Beam

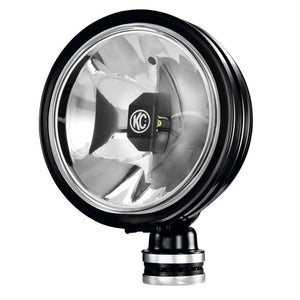

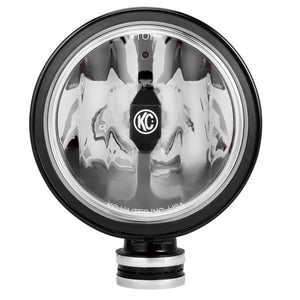

KC HiLiTES 6" Gravity LED Daylighter use bright CREE LEDs in a spot pattern for focused width and distance. Black steel housing, polycarbonate lens and FLEXible base for easy aim. System includes wiring harness, switches, and yellow covers.
FEATURES
-2 x 20W Gravity® LED G6 optical inserts
-Black Powder Coated Steel housing
-Hard Coated Polycarbonate Lens
-Spot Beam Pattern
LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: 2,300 lm
-Lux @ 10 Meters: 2,150 lx
-Candela: 215,000 cd
-Beam Distance (Meters): 972m
SPECIFICATIONS (PER LIGHT)
-Wattage: 20W
-LED Source: CREE XPL HD LED
-Amp Draw: 1.63A
-Voltage: 9V-32V
-IP Rating: IP67
-Product Dimensions: W - 6.22" x H - 8.42" x D - 5.38"

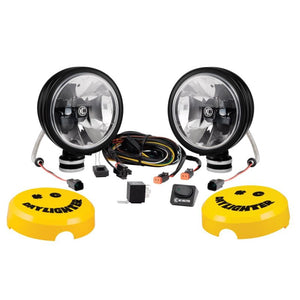

PARTS INCLUDED
-(2) 20W 6" Gravity® LED Daylighter lights
-Deluxe Wiring Harness w/2-Pin weatherproof connectors
-(2) Protective KC Daylighter light covers
-30 Amp Illuminated Switch w/ Switch Panel
GRAVITY® EXTREME OUTPUT AND EFFICIENCY
Gravity® Daylighters are powered by our G6 LED optical inserts which deliver an incredible 2,150 lx @ 10m using only 1.63A per light. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward.
AVAILABLE BEAM PATTERN AND ADVANTAGES
Spot Beam- Provides focused bright light for maximum forward distance and high-speed visibility.
ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION
Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim their lights ensuring beam stability and consistency.
RACE PROVEN STRENGTH & DURABILITY
The race-proven steel housing combined with our IP67 rated Gravity® G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains.
